Products
Environmental Friendly Retaining And Acoustic Walls With Excellent Sound Absorbing Effect
 |
 |
 |
 |
 |
|
|
|
|
|
|
|
|
|
|
|
|
|
| SPECIFICATION | |
| Dimensions (wxdxh) | 250 x 500 x 200mm |
| Weight of empty block | 21 kg. approx. |
| Weight of earth filled block | 50 kg. approx. |
| Vertical Angle (batter) | 15º |
| Compressive strength | 35 MN/m2 |
| No. of block per m2 | 20 |
| Weight of wall per m2 | 1000 kg. approx. |
| SPECIFICATION | |

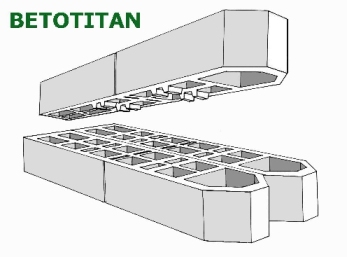

| Dimensions (wxdxh) | 250 x 1000 x 200mm |
| Weight of empty block | 50 kg. approx. |
| Weight of earth filled block | 90 kg. approx. |
| Vertical Angle (batter) | 8º or 23º |
| Compressive strength | 30 MN/m2 |
| No. of block per m2 | 20 |
| Weight of wall per m2 | 1800 kg. approx. |
Very high walls with various appearances (chipped stone style), plantable, using coloured concrete.
It is possible to modify the vertical angle during laying by 8° and 23.5°.
Useful height: 20 metres.

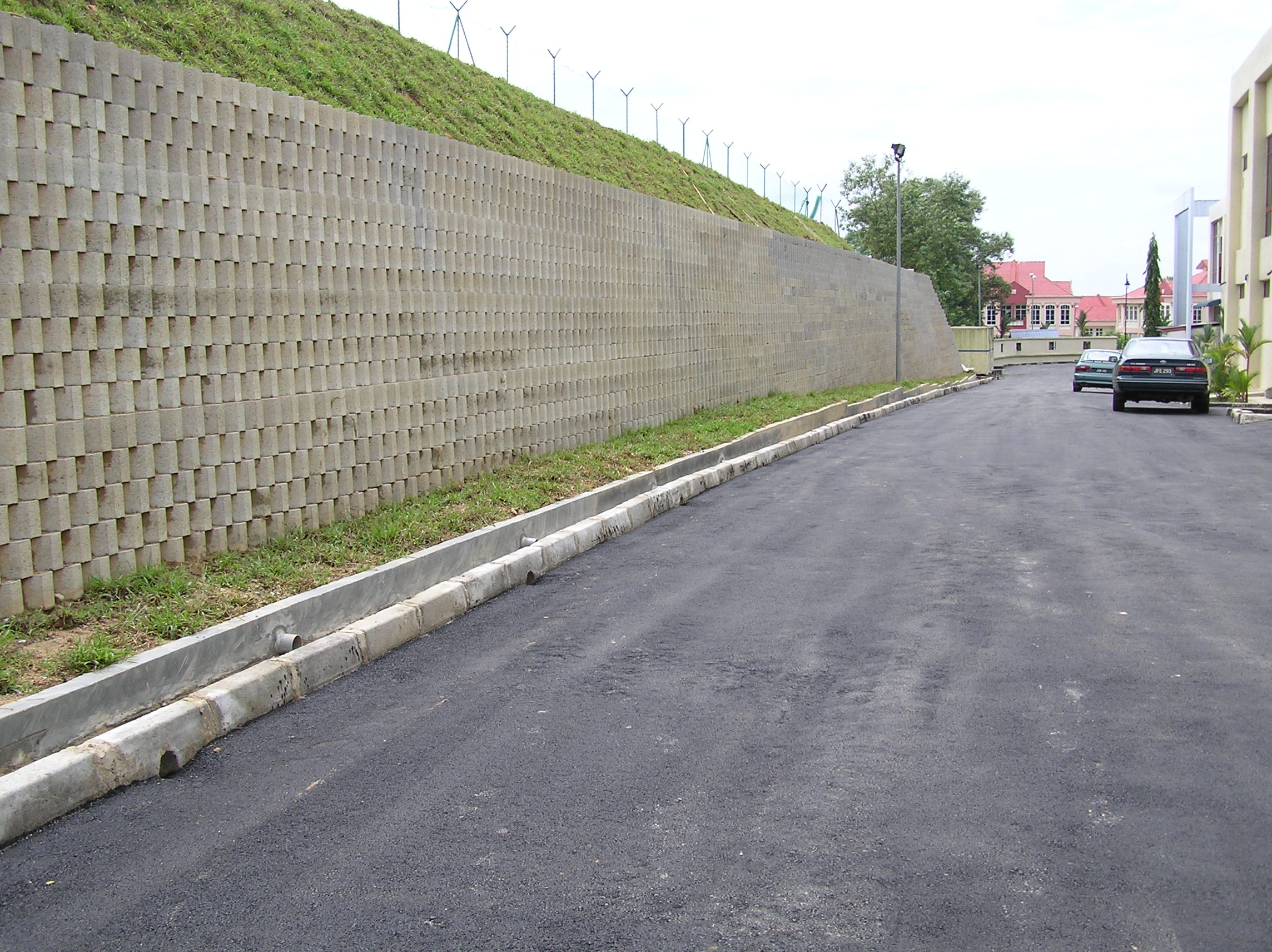

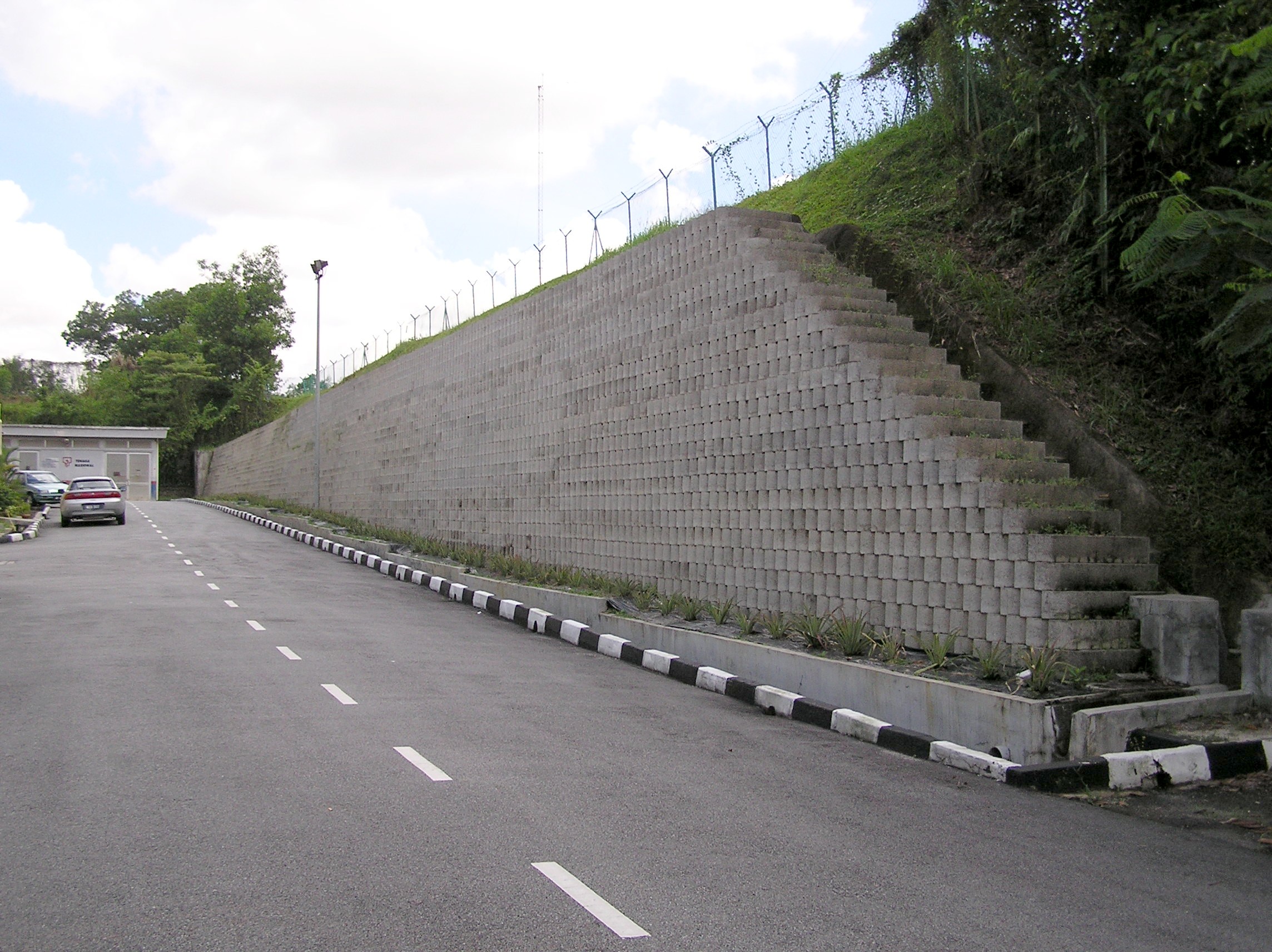

Applications: retaining walls, earth retention, bridge support.
It is possible to modify the vertical angle during laying by 8° and 23.5°.
Useful height: 20 metres.
Applications: retaining walls, earth retention, bridge support.
Very high walls with various appearances (chipped stone style), plantable, using coloured concrete.
It is possible to modify the vertical angle during laying by 15°.
Useful height: 10 metres.

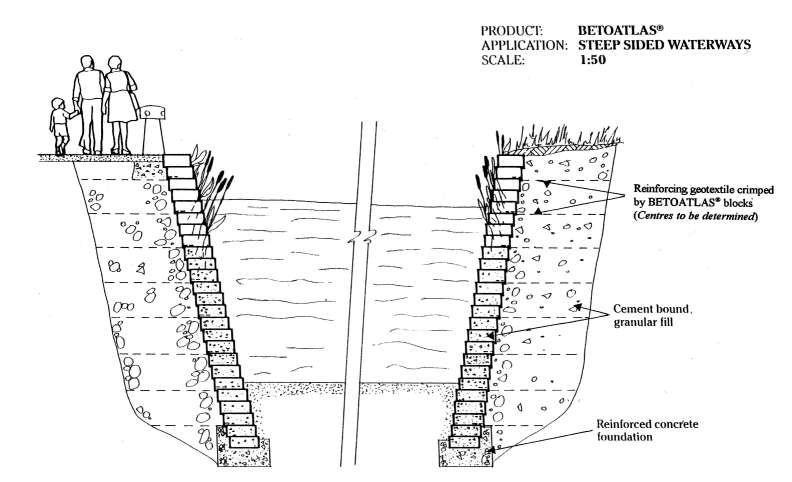

Applications: retaining walls, earth retention, riverbank and lake retention.
It is possible to modify the vertical angle during laying by 15°.
Useful height: 10 metres.
Applications: retaining walls, earth retention, riverbank and lake retention.
|
|
|
|

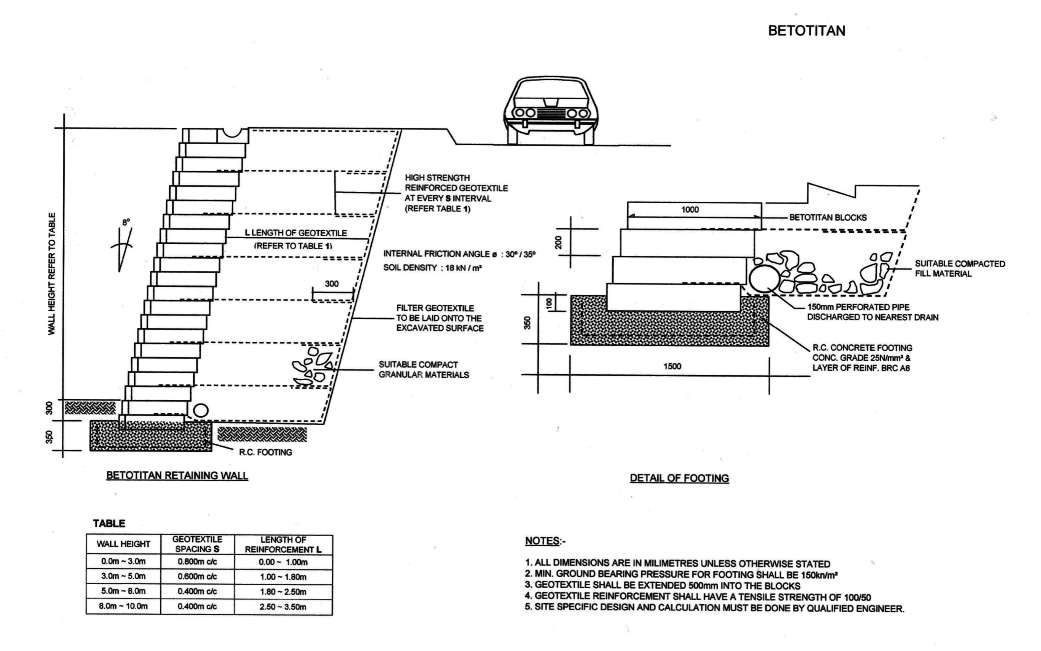

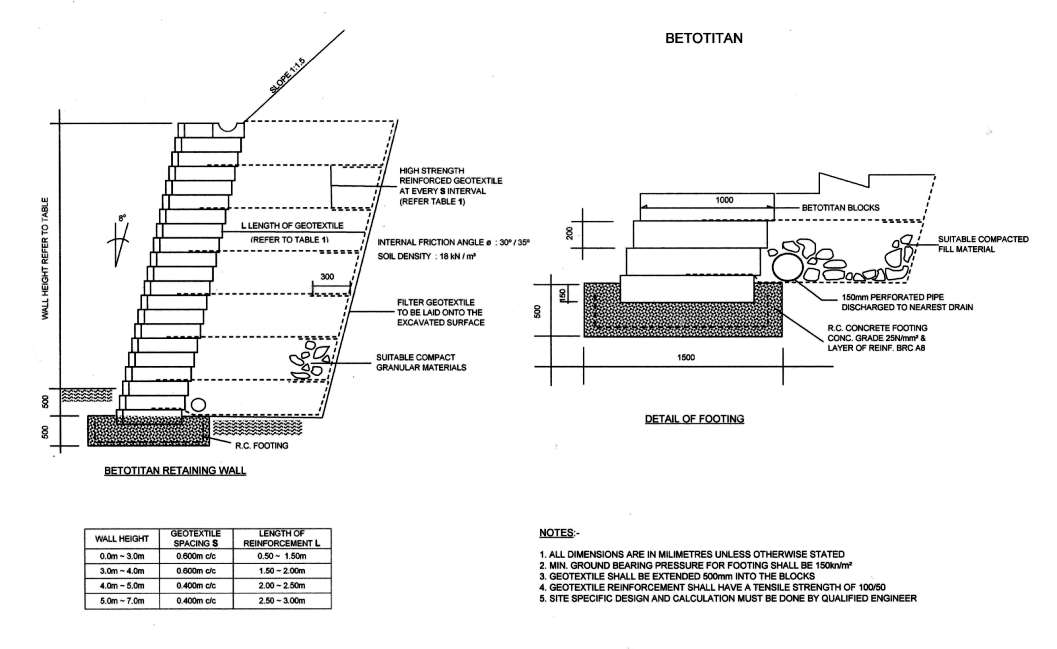

Note: All design drawings and pictures in this website are served as an introductory and basic guideline only. Final site-specific retaining wall design drawing must be carried out by a qualified engineer
